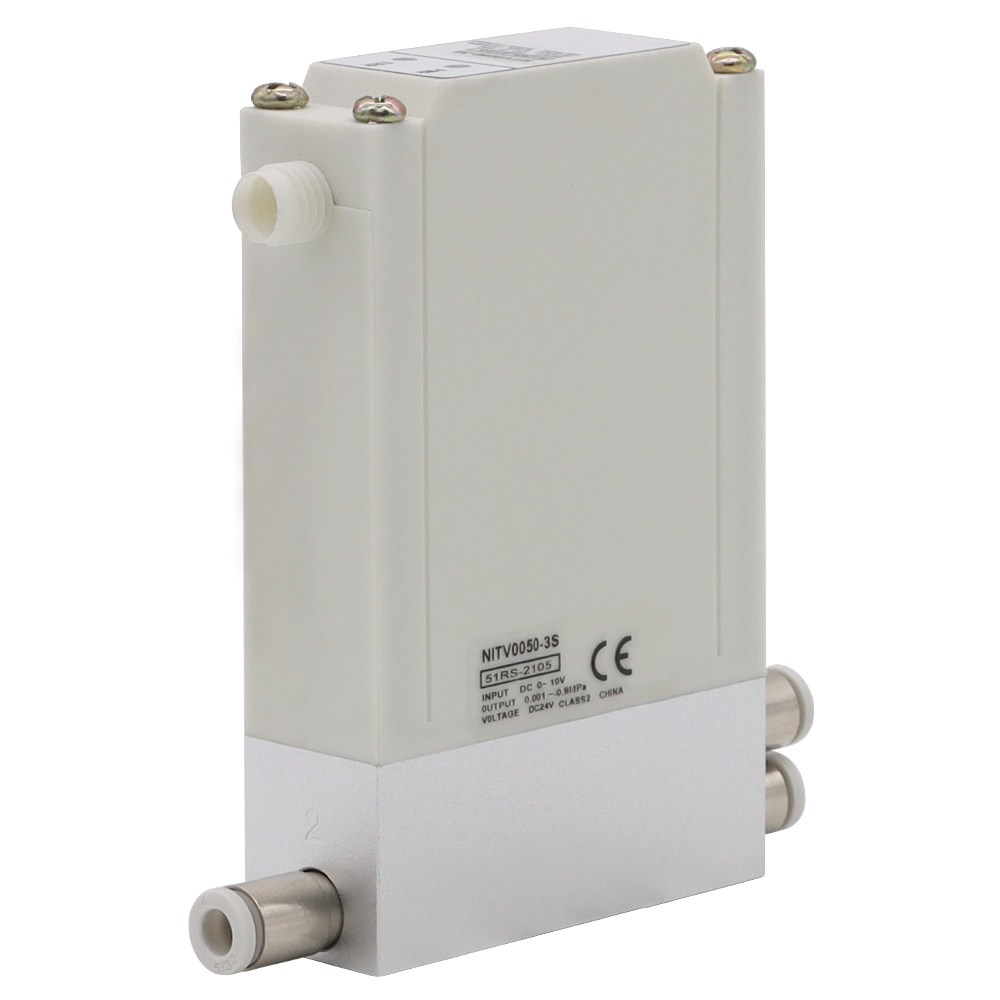

NITV0000
NNT
| Model | NITV001□ | NITV003□ | NITV005□ | |
| Minimum supply pressure | Set pressure +0.1 MPa | |||
| Maximum supply pressure | 0.2 MPa | 1.0 MPa | ||
| Set pressure range | 0.001 to 0.1 MPa | 0.001 to 0.5 MPa | 0.001 to 0.9 MPa | |
| Power supply | Voltage | DC24V ± 10%， DC12~15V | ||
| Current consumption | Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less | |||
| Input signal | Current type | DC 4 to 20 mA, DC 0 to 20 mA (Sink type) | ||
| Voltage type | DC 0 to 5 V, DC 0 to 10 V | |||
| Input impedance | Current type | Approx. 250 Ω | ||
| Voltage type | Approx. 10 kΩ | |||
| Output signal(monitor output) | Analog output | DC 1 to 5 V (Output impedance: Approx. 1 kΩ) Output accuracy ± 6% F.S. or less | ||
| Linearity | ± 1% F.S. or less | |||
| Hysteresis | 0.5% F.S. or less | |||
| Repeatability | ± 0.5% F.S. or less | |||
| Sensitivity | 0.2% F.S. or less | |||
| Temperature characteristics | ± 0.12% F.S./°C or less | |||
| Ambient and fluid temperature | 0 to 50°C (No condensation) | |||
| Enclosure | IP65 | |||
| Connect size | Single unit | Metric size | Φ4 | |
| Manifold | Metric size | 1,3 Port : Φ6 ; 2 Port : Φ4 | ||
| Weight | 100g or less (without options) | |||
