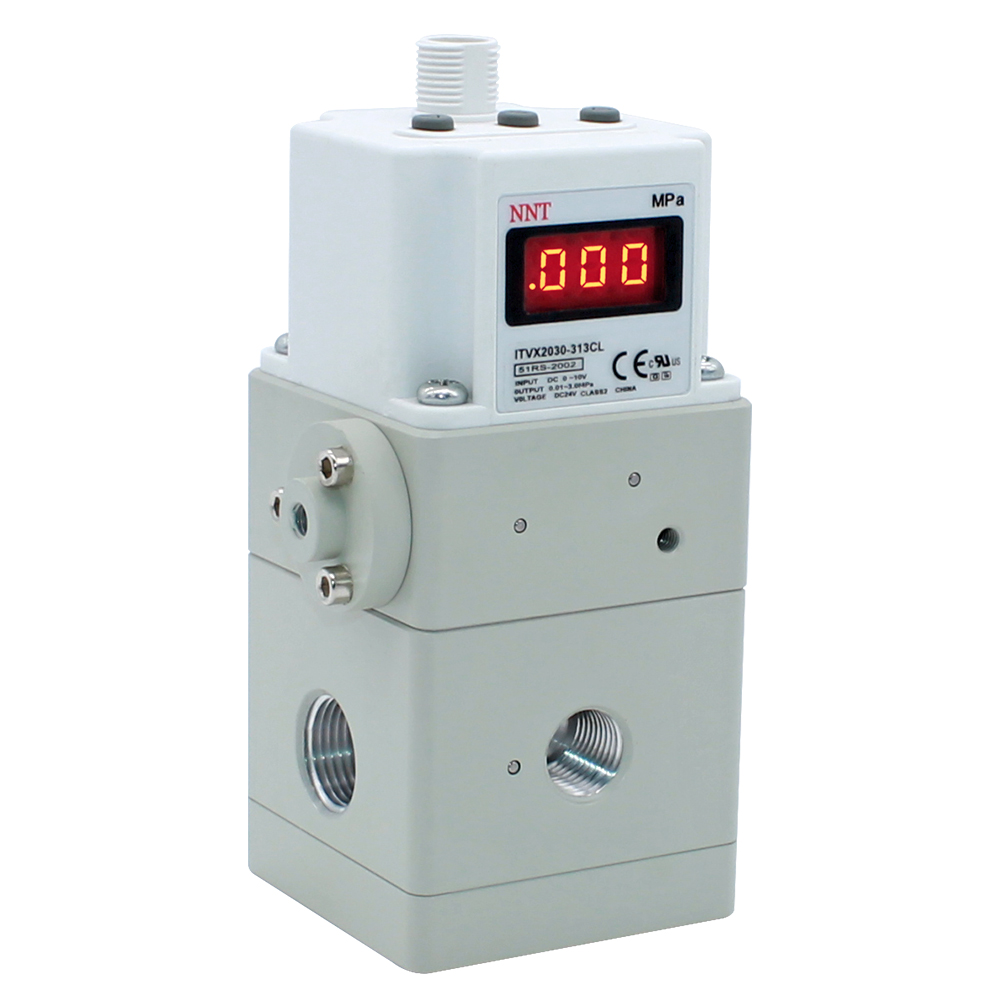

NITVX2030
NNT
| Model | NITV101□ | NITV103□ | NITV105□ | |
| NITV201□ | NITV203□ | NITV205□ | ||
| NITV301□ | NITV303□ | NITV305□ | ||
| Minimum supply pressure | Set pressure +0.1 MPa | |||
| Maximum supply pressure | 0.2MPa | 1.0MPa | ||
| Set pressure range | 0.005~0.1 MPa | 0.005~0.5MPa | 0.005~0.9MPa | |
| Power supply | Voltage Current consumption | DC24V±10%, DC12-15V | ||
| Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less | ||||
| Input signa | Current type Voltage type Preset input | DC4~20mA, DC0~20mA(Sink type) | ||
| DC0~5V, DC0-10V | ||||
| 4 points (Negative common), 16 points (No common polarity) | ||||
| Input impedance | Current type Voltage type Digital input | 250 Ω or less | ||
| Approx. 6.5 KΩ | ||||
| Power supply voltage 24 VDC type: Approx. 4.7 KΩ Power supply voltage 12 VDC type: Approx. 2.0 KΩ | ||||
| Output signal output (monitor output) | Analog output Switch output | 1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mA DC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less | ||
| NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA | ||||
| Linearity | ± 1% F.S. or less | |||
| Hysteresis | 0.5% F.S. or less | |||
| Repeatability | ± 0.5% F.S. or less | |||
| Sensitivity | 0.2% F.S. or less | |||
| Temperature characteristics | ± 0.12% F.S./°C or less | |||
| Output pressure display | Accuracy Minimum unit | ± 2% F.S. ± 1 digit or less | ||
| Mpa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1 , kPa: 1 | ||||
| Ambient and fluid temperature | 0 to 50°C (No condensation) | |||
| Enclosure | IP65 | |||
